VigorSwitch G2100
10-Port Layer 2+ Managed Switch
- 8 GbE ports
- 2 SFP ports
- L2+ Managed
- 20G Switching Capacity
- 1U Rackmount
DrayTek VigorSwitch G2100 is a compact Layer 2+ Managed Gigabit switch well-suited for smart home and branch/remote sites. It has 2x GbE SFP ports, 8x Gigabit Ethernet ports, and 1x console port. Featuring Layer 3 features, including DHCP Server and VLAN Routing, VigorSwitch G2100 improves local network sustainability and efficiency regardless of the gateway. Furthermore with IP Conflict Detection & Prevention, ONVIF Surveillance, ping watchdog and a lot more, this is the balanced switch that brings advanced features into small environments.
Key Features
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.
Wire-Speed VLAN Routing
Improve overall network performance by using VigorSwitch G2100 to route the inter-VLAN traffic directly and offload the router.

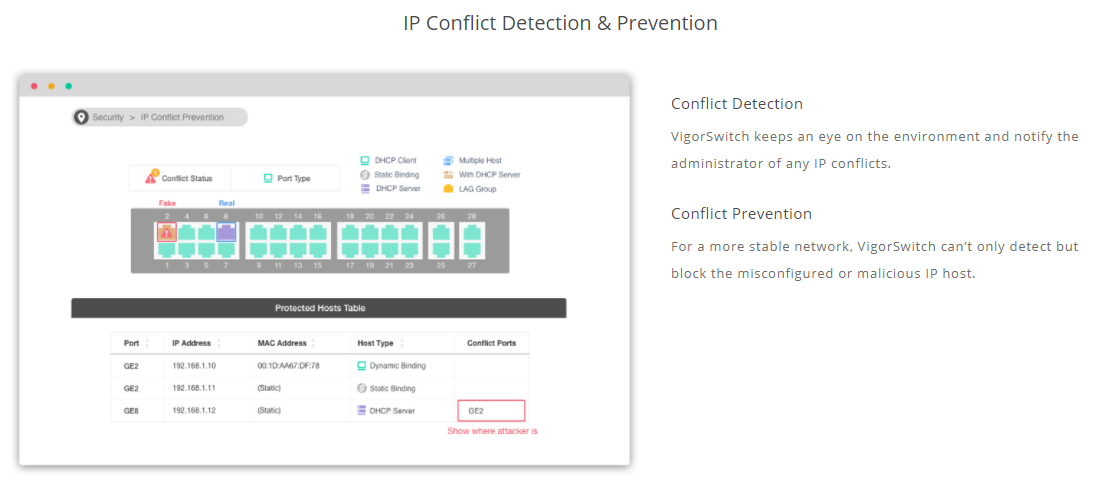

IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host.
Access Control
VigorSwitch G2100 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
IPv6 Ready
VigorSwitch G2100 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.

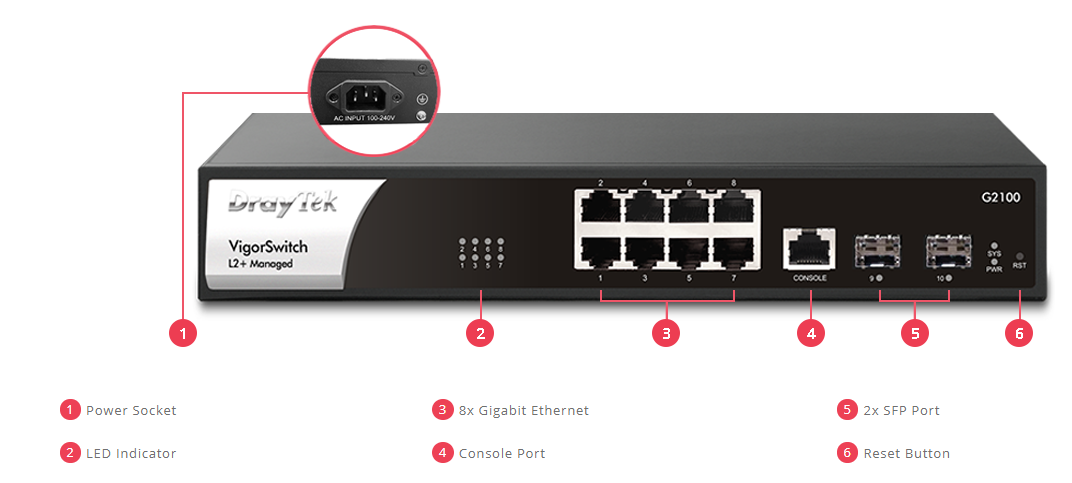

Interface |
|
| LAN Port | 8x 10/100/1000Mbps Ethernet, RJ-45 2x 1000Mbps SFP slot |
| Console Port | 1x RJ-45 |
| Button | 1x Factory Reset Button |
Capacity |
|
| Buffer Size | 4.1 Mbit |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps (64 bytes) |
| MAC Address Table | 8k |
| Jumbo Frame | Up to 9 KB |
Networking Standards |
|
| IP Version | IPv4, IPv6 |
| Ethernet Standards | 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1ad QinQ 802.1x Port Access Control 802.1AB LLDP 802.3az EEE |
VLAN |
|
| Max.Number of VLAN | 256 |
| VLAN Type | 802.1q Tag-based MAC-based Protocol-Based Management VLAN Voice VLAN Surveillance VLAN |
| 802.1x Guest VLAN | |
| Port Isolation | |
| GVRP | |
| Q-in-Q | Basic |
ONVIF Surveillance |
|
| Discovery | |
| Surveillance Topology | |
| Real-Time Video Streaming | |
| ONVIF Device Maintenance | Device Info, Reset Factory Default, Time Settings, Reboot |
QoS |
|
| Number of QoS Queues | 8 |
| Queue Scheduling | SPQ, WRR |
| CoS (Class of Service) | 802.1p CoS, DSCP, CoS-DSCP, IP Precedence |
| Rate Limit & Shaping | |
Security |
|
| Access Control List | MAC, IPv4, IPv6 |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| DoS Defense | |
| 802.1x Port Access Control | |
| IP Source Guard | |
| IP Conflict Detection | |
| IP Conflict Prevention | |
| Loop Protection | |
| Dynamic ARP Inspection | |
| DHCP Snooping with Option 82 | |
Link Aggregation |
|
| Max. Number of Group | 4 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | MAC Address, IP/MAC Address |
Multicast |
|
| IGMP Snooping | v2, v3 (BISS) |
| IGMP Querier | |
| MLD Snooping | v1, v2 (Basic) |
| Max. Number of Multicast Group | 256 |
| Group Throttling | |
| Group Filtering | |
| MVR (Multicast VLAN Registration) | |
Layer 3 Features |
|
| Static Route | |
| VLAN Route | |
| DHCP Server | (Since firmware v2.6.8) |
AAA |
|
| Authentication Server | RADIUS, TACACS+ |
| Port Authorization | |
| Management Account | |
| RADIUS Attribute Assignment | User Privilege, VLAN |
| Accounting | |
| Multiple Server | |
Management |
|
| Web Interface | HTTP, HTTPS |
| Command Line Interface | Telnet, SSH v2 |
| OpenVPN Client | Certificate-based authentication |
| User Authentication | Local Database, RADIUS, TACACS+ |
| SNMP | v1, v2c, v3 |
| Private MIB | |
| RMON Group | 1, 2, 3, 9 |
| LLDP | LLDP-MED, Media Endpoint Discovery Extension |
| Mail Alert | Port Status, Port Speed, System Restart, IP Conflict, Harware Monitor, Device Check, ONVIF Throughput Threshold |
| Syslog | |
| 2-Level Admin Privilege | |
| Multiple Admin Accounts | |
| Managed by VigorRouter SWM | |
| Managed by VigorConnect | |
| Managed by VigorACS 2 | |
| Config File Export/Import | |
| SNTP (Simple Network Time Protocol) | |
| Diagnostics Tools | Port Mirroring, Ping, Cable Test |
Physical |
|
| 19-inch Rack Mountable | Mouting Kit Included |
| Power Input | AC 100-240V @ 0.7A |
| Max. Power Consumption | 18 watts |
| Dimension (mm) | 270(W) x 181(D) x 44(H) |
| Weight | 1.78 kg (3 lb) |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity | 10 to 90% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| Certificate |   |
Notes :
-
All specifications are subject to change without notice.
-
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
