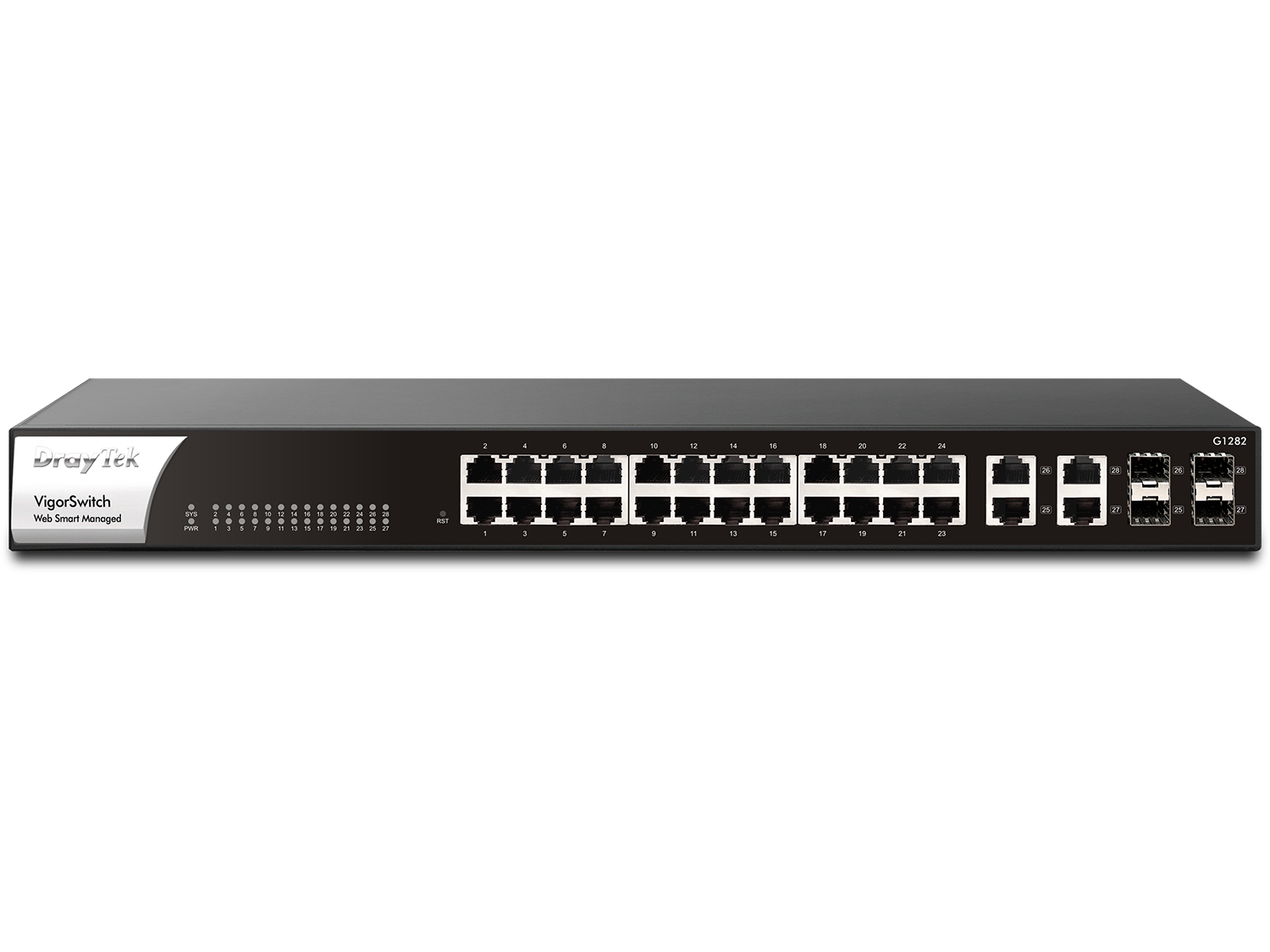

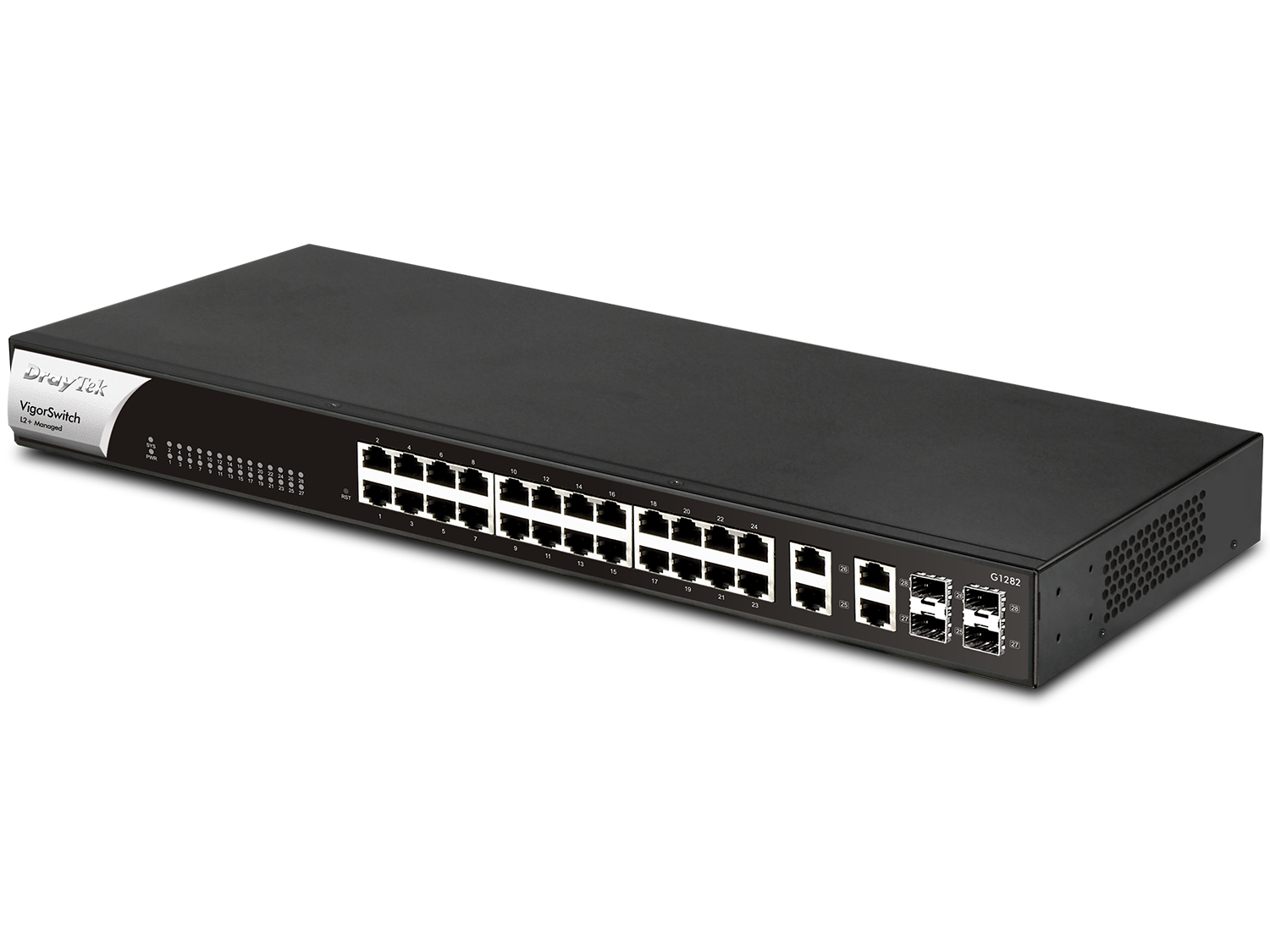

28-Port Web Smart Gigabit Switch

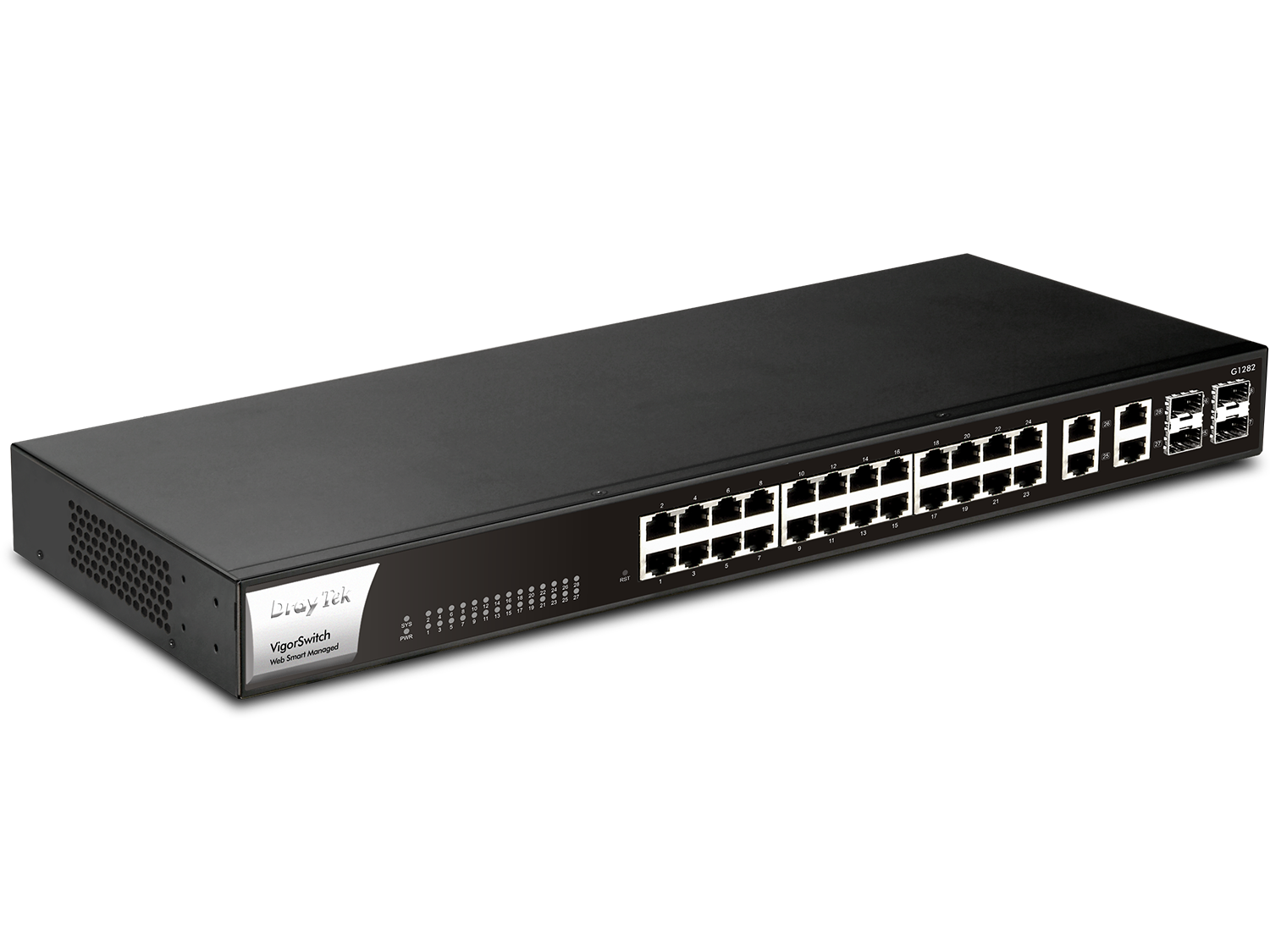

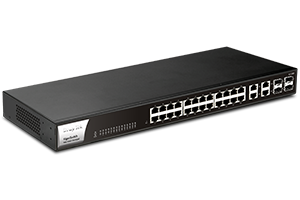

DrayTek VigorSwitch G1282 is a Web Smart Gigabit switch. It has 24x GbE ports and 4x GbE/SFP combo ports.
Equipped with enterprise-level features, including IP Conflict Detection & Prevention, ONVIF Surveillance, and ping watchdog, VigorSwitch G1282 is a managed switch that brings network security and stability into mid-sized environments.
Overview
24x GbE
10/100/1000Mbps Ethernet, RJ-45
4x GbE/SFP
Gigabit Ethernet, RJ-45/SFP Combo
56 Gbps
Switching Capacity
4.2 Mbit
Buffer Size

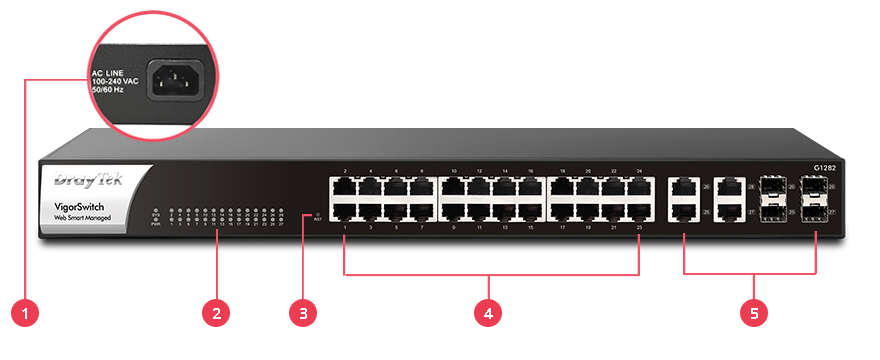

1Power Socket
2LED Indicator
3Reset Button
424x Gigabit Ethernet
54x Gigabit Ethernet/SFP Combo
ONVIF-Friendly

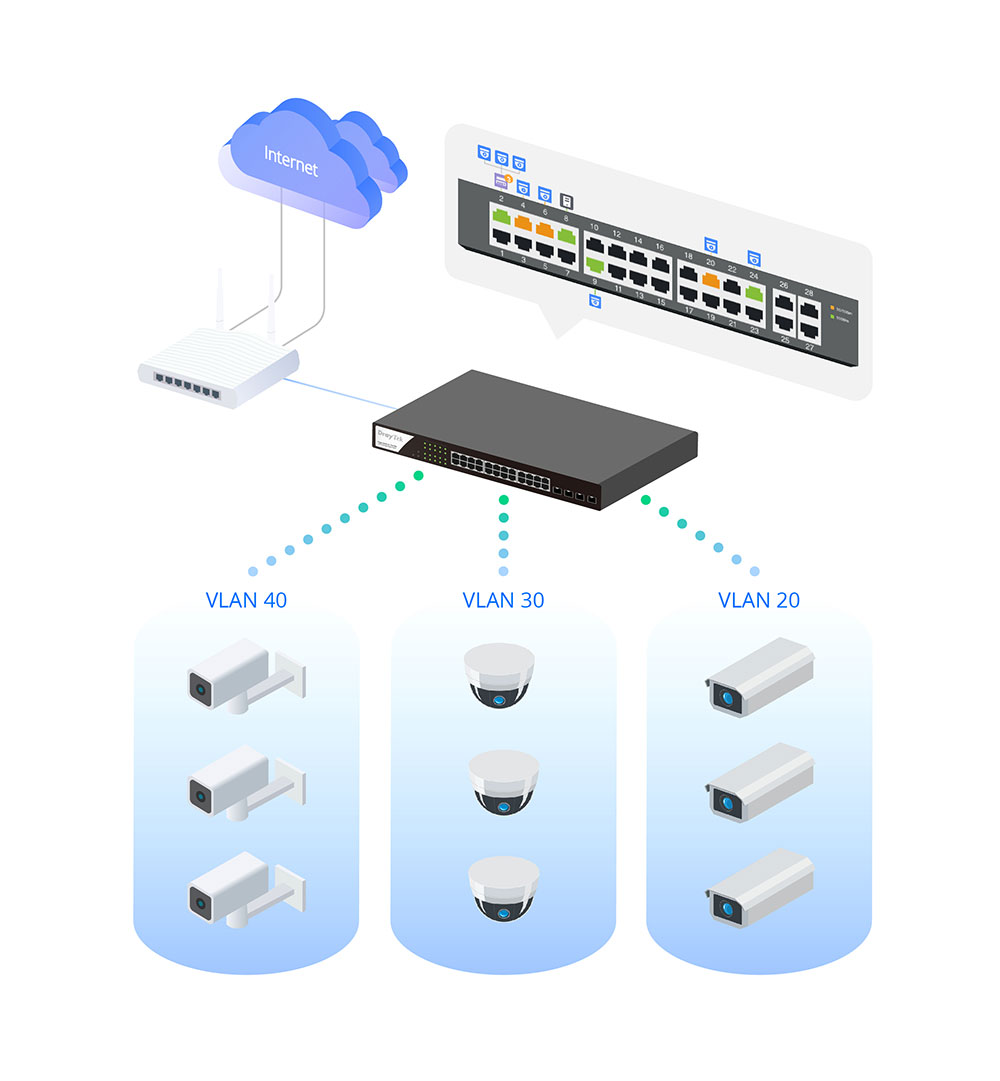

Recognizes ONVIF devices across different VLANs, displays the surveillance topology, and provides an interface for video streaming and device maintenance.
Centralized Hierarchical View

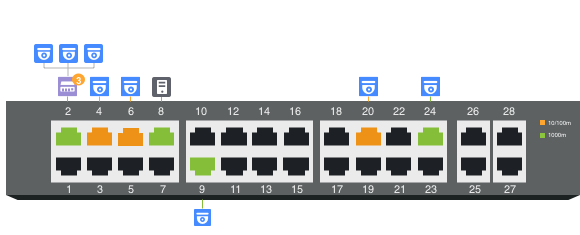

VigorSwitch automatically detects ONVIF devices and displays the topology of connected IP cameras and NVRs.
Images Viewing
You can view IP camera video directly on the VigorSwitch.
Device Management
Perform basic configuration and maintenance of ONVIF devices remotely through VigorSwitch, such as remote reboot, factory reset and network settings.

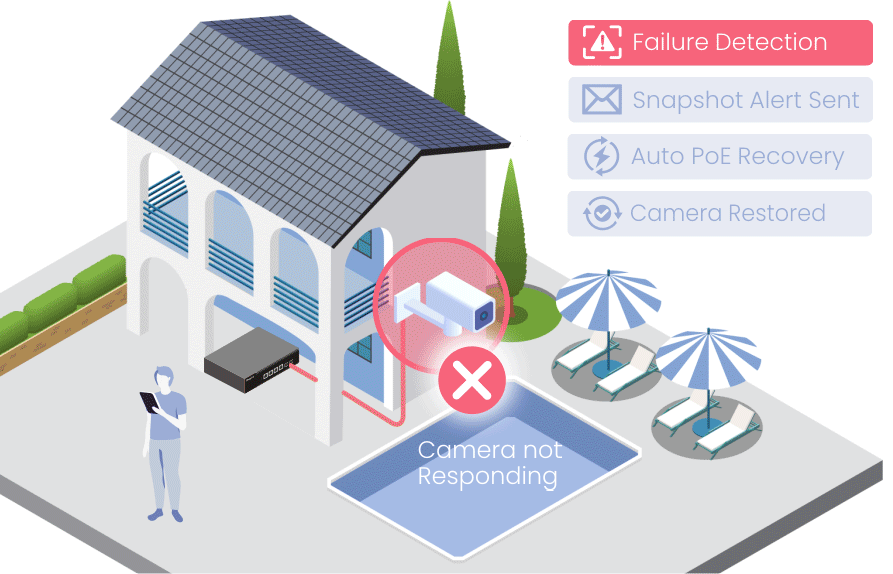

ONVIF Snapshot Alert
Monitor. Detect. Recover.
VigorSwitch automatically monitors ONVIF cameras and alerts you when a camera becomes unavailable.
The latest snapshot helps you quickly identify the affected location, and PoE auto recovery can restore camera operation automatically.
Key Benefits
- Snapshot Alerts
- Camera Monitoring
- Auto Recovery
- Faster Response
- Reduced Downtime

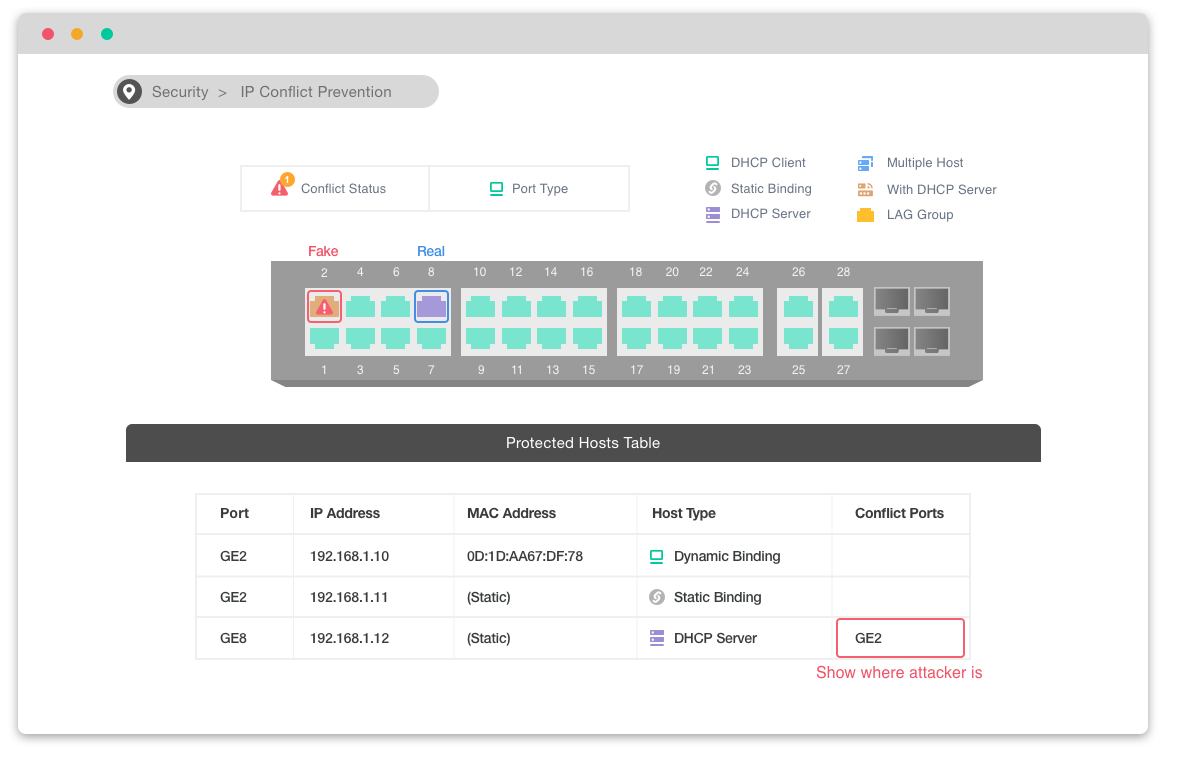

IP Conflict Detection & Prevention
Conflict Detection
VigorSwitch monitors the network and notifies the administrator of any IP conflicts.
Conflict Prevention
For a more stable network, VigorSwitch can not only detect but also block misconfigured or malicious IP hosts.
LAN Management
DrayTek provides an all-in-one platform for managing Vigor devices on the LAN.
Automatic Device Discovery
Simply connect the VigorSwitch to the LAN side of the router, and the Vigor Router will discover the devices to be managed.
Provisioning
Set up switch profiles on the Vigor Router. VLAN and scheduled port control settings can be configured there and provisioned to the VigorSwitch remotely.
Monitoring
VigorRouter provides a centralized, hierarchical view of managed devices, so you can always check whether a managed VigorSwitch is online and whether any logs or alerts have occurred.
System Maintenance
You can perform a factory reset, save or restore a configuration backup, or trigger a remote reboot directly from the VigorRouter, with no need to log in to each device’s management page.

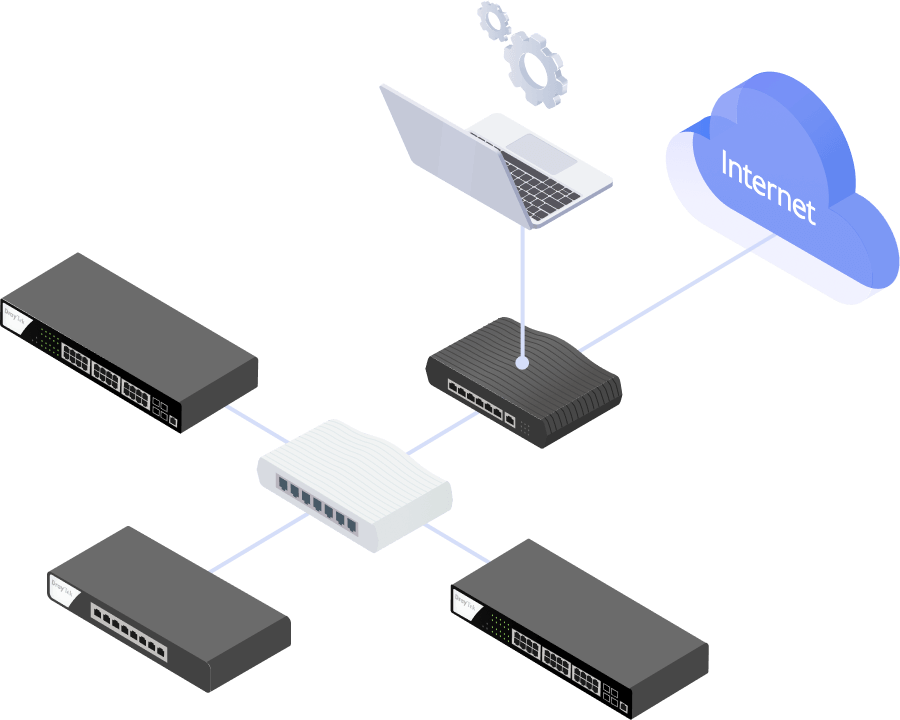

Management Solution
All-in-One Management
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Remote PoE Device Reboot, Quick VLAN Configuration
Software Management
VigorACS 3
- Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch/Router Maintenance
- Scheduled Maintenance
- Report

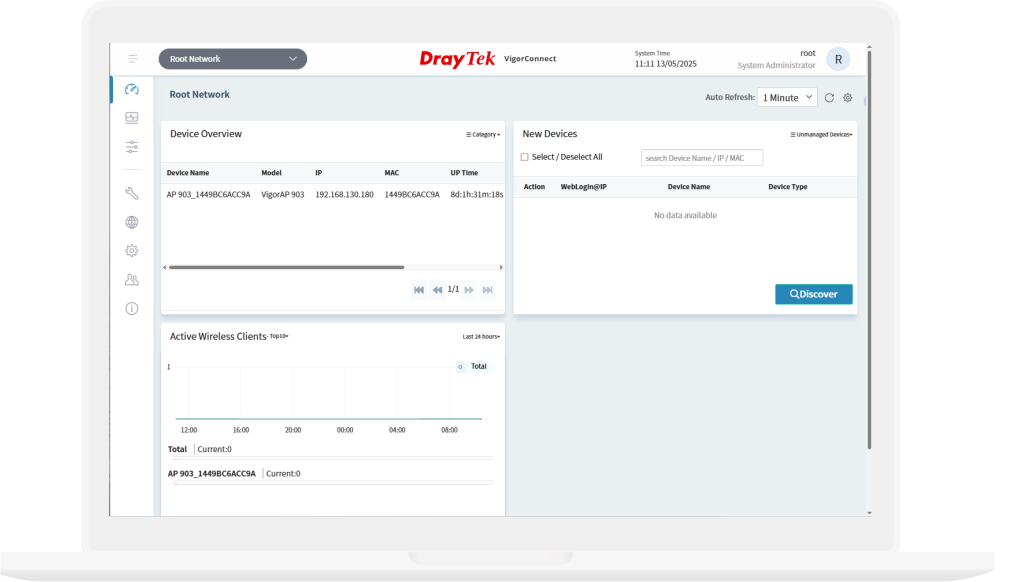

VigorConnect
- AP/Switch Discovery
- Auto-Provisioning
- Monitoring
- Centralized Hierarchy View
- Alarm
- Remote AP/Switch Maintenance
- Scheduled Maintenance
In the Box
VigorSwitch G1282
Rack Mount Kit
Power Cord
Quick Start Guide
Related Products
VigorSwitch P1282
– 24x PoE/PoE+ GbE ports
– 4x GbE/SFP Combo ports
– Web Smart
– 56G Switching Capacity
– 1U Rackmount
Note: Stated throughput figures are maximums from DrayTek internal testing under optimal conditions, with Hardware Acceleration enabled where available. Actual performance may vary depending on network conditions and the applications in use.
Key Features
Auto Surveillance & Voice VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization.
Web-Based GUI
Easily manage and monitor the network through the web-based console with graphics showing ports and hardware status.
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag.
Multiple Admin Accounts
Multiple Admin accounts with two levels of administrator privilege.
ONVIF-Friendly
Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance. Learn more
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more
IP Conflict Prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more
Energy-Efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
Specs
Performance | |
| Buffer Size (Mbit) | 4.2 |
| Switching Capacity (Gbps) | 56 |
| Forwarding Rate (64 bytes)(Mpps) | 41.7 |
| MAC Address Table | 8K |
| Max. Jumbo Frame (KB) | 9 |
Ports | |
| 1 GbE | 24 |
| GbE/SFP Combo | 4 |
Standard Compliance | |
| Ethernet Standards | 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3x Flow Control 802.3 Auto-Negotiation 802.1q Tag-based VLAN 802.1p Class of Service 802.1d STP 802.1w RSTP 802.3ad LACP 802.1AB LLDP 802.3az EEE |
Spanning Tree | |
| STP | ✓ |
| RSTP | ✓ |
Link Aggregation | |
| Max. Number of Group | 8 |
| Max. Number of Member in Each Group | 8 |
| Type | Static, LACP |
| Traffic Load Balancing | ✓ |
VLAN | |
| Max. Number of VLAN | 512 |
| VLAN Type | 802.1q Tag-based VLAN MAC-based VLAN Protocol-based VLAN Management VLAN Voice VLAN Surveillance VLAN |
Multicast | |
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | ✓ |
ONVIF Surveillance | |
| Discovery | ✓ |
| Surveillance Topology | ✓ |
| Real-Time Video Streaming | ✓ |
| ONVIF Device Maintenance | Device Info Network Settings Time Settings Reboot Reset to Factory Default |
QoS | |
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) | CoS DSCP CoS-DSCP IP Precedence |
| Rate Limiting | ✓ |
Security | |
| IP Source Guard | ✓ |
| Traffic Control | Storm Control, DoS Defense |
| IP Conflict Prevention | ✓ |
| Loop Protection | ✓ |
Management | |
| Local Service | HTTP HTTPS Telnet SSH v2 |
| Config Backup/Restore | ✓ |
| 2-Level Administration Privilege | ✓ |
| Access Control | Access List |
| OpenVPN Client | ✓ |
| SNMP | v1, v2c, v3 |
| SNTP (Simple Network Time Protocol) | ✓ |
| LLDP | ✓ |
| Mail Alert | Port Status Port Speed System Restart IP Conflict Hardware Monitor Device Check ONVIF IP Cam Snapshot |
| VigorRouter Management (SWM) | ✓ |
| VigorConnect Management (Since f/w) | V2.6.9 |
| VigorACS Management (Since f/w) | V2.6.9 |
Physical | |
| Rack Mountable | 1U |
| Power Input | AC 100-240V @ 0.7A |
| Max. Power Consumption (watts) | 36 |
| Dimension (mm) | 440 x 205.3 x 44 |
| Weight (g) | 2800 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
Note:
- * : Future Support
- The stated throughput performance figures are the maximum derived from DrayTek internal testing, conducted under optimal conditions, with Hardware Acceleration enabled where available. The actual performance may vary based on network conditions and activated applications.
