Vigor 2135 Series
Gigabit Broadband Single-WAN Router for Home/SOHO

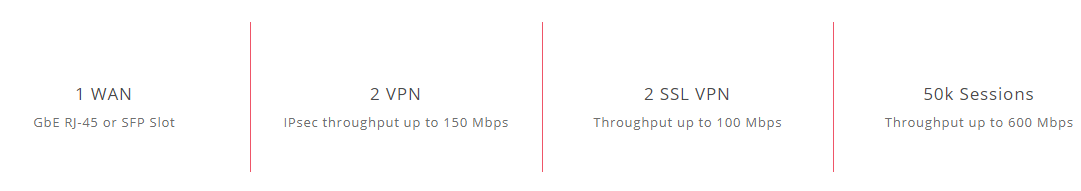

- Gigabit Ethernet WAN
- 50K NAT Sessions
- 2 Concurrent VPN
- Built-in 11ac Wave 2 WLAN (optional)
Overview
Vigor2135 Series is a broadband firewall and a VPN router. With hardware accelerator, it delivers up to 940 Mbps performance without sacrificing bandwidth control features. It’s also equipped with business-grade features, including web content filtering, Route Policy, App-based QoS and lots more, and is perfect for professional smart homes/SOHO users who would like to take full control of their own network. The series includes models with built-in 11ac Wave 2 wireless standard and fiber WAN.
Models
| Model | WAN Port | 2.4GHz WLAN | 5GHz WLAN | Wireless Antenna | VoIP Gateway | FXS RJ11 |
| Vigor2135 | GbE, RJ-45 | - | - | - | - | - |
| Vigor2135ac | GbE, RJ-45 | Yes | Yes | 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) | - | - |
| Vigor2135Vac | GbE, RJ-45 | Yes | Yes | 2x Dual-Band (4dBi for 5GHz, 2dBi for 2.4GHz) | Yes | 2 |
Specs

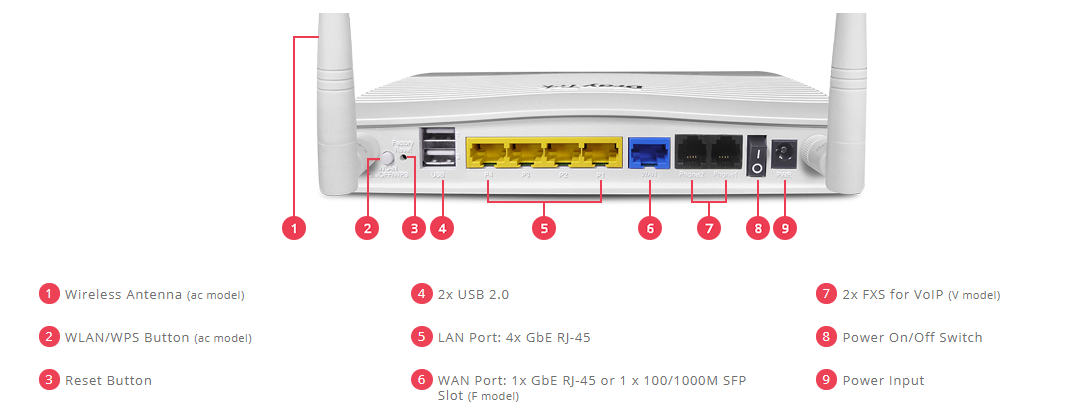

Interface |
|
| WAN Port | 1x Gigabit Ethernet or 100/1000M Fiber SFP (F model) |
| LAN Port | 4x Gigabit Ethernet |
| USB Port | 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| Wirelss Antenna | 2x External Dipole Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz (ac model) |
| 2.4G WLAN | 802.11n 2x2 MIMO 400Mbps (ac model) |
| 5G WLAN | 802.11ac Wave 2 2x2 MU-MIMO 867Mbps (ac model) |
| FXS RJ-11 | 2 (V model) |
Performance |
|
| NAT Throughput | 600 Mbps |
| NAT Throughput w/ Hardware Acceleration | 940 Mbps |
| IPsec VPN Performance | 150 Mbps (AES 256 bits) |
| SSL VPN Performance | 100 Mbps |
| Max. Number of NAT Sessions | 50,000 |
| Max. Concurrent VPN Tunnels | 2 |
Internet Connection |
|
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| 3G/4G/LTE WAN with USB modem | |
| WAN Failover | |
| Connection Detection | ARP, Strict ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
LAN Management |
|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 8 |
| Number of LAN Subnet | 4 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal | |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Mail PIN, RADIUS, External Portal Server |
Networking |
|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| DNS Security (DNSSEC) | |
| Multicast | IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour |
| SMB File Sharing | (Requires external storage) |
VPN |
|
| LAN-to-LAN | |
| Teleworker-to-LAN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2, IKEv2-EAP, IPsec XAuth, OpenVPN |
| User Authentication | Local, RADIUS, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256, MD5 |
| Encryption | MPPE, DES, 3DES, AES |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
Firewall & Content Filtering |
|
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required) |
| DoS Attack Defense | |
| Spoofing Defense | |
Bandwidth Management |
|
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritization | |
| APP QoS | |
Wireless LAN (ac model) |
|
| Number of SSID | 4 per radio band |
| Security Mode | WEP, WPA, WPA2, Mixed(WPA+WPA2) |
| Authentication | Pre-Shared Key, 802.1X |
| WPS | PIN, PBC |
| WDS | Repeater (5GHz Only) |
| Access Control | Access List, Client Isolation, Hide SSID, WLAN Scheduling |
| AirTime Fairness | |
| Band Steering | (ac model) |
| MU-MIMO | (5GHz Only) (ac model) |
| WMM | |
VoIP Gateway (V model) |
|
| Protocol | SIP, RTP/RTCP, ZRTP |
| SIP Registrars | 6 |
| Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec | G.711 A/u law, G.726, G.729 A/B |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
Management |
|
| Local Service | HTTP, HTTPS, Telnet, SSHv2, FTP, TR-069 |
| Config File Export & Import | |
| Config File Compatibility | Vigor2132 Series, Vigor2133 Series |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Managed by VigorACS | |
| Central AP Management | 2 VigorAP |
Physical |
|
| Power Supply | DC 12V @ 1-1.5A |
| Max. Power Consumption | 18 watts (Vac model) |
| Dimension | 207mm x 131mm x 42mm |
| Weight | 440g (Vac model) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |    |
Notes :
-
All specifications are subject to change without notice.
-
The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
