VigorAP 1060C

4x4 Dual Band WiFi 6 Ceiling AP

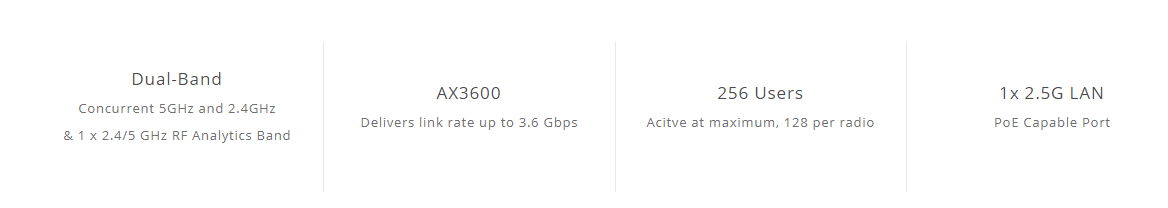

- 11ax Wave 4x4 -Dual Band
- Maximum Data Rate: 3.6 Gbps
- Wall/Ceiling Mount


Pro Performance AP with Pro Management

VigorAP 1060C is the most powerful wireless AP we’ve ever made. With 3.6 Gbps aggregated max link rate, it’s suitable for high density environments. It can be cloud-managed by VigorACS, and also act as the master AP to manage up to 50 node VigorAPs in LAN


AP-assisted Roaming


Making Transmission Effective

Disassociate the Wireless clients who are out of the effective transmission range defined by custom Basic Rate or/and RSSI threshold, and force them to pick up another access point with a stronger signal.

Resource Saving

Proactively kick out the clients with a low basic rate or low RSSI can prevent the access points trying to do ineffective transmission but saving the airtime, which will results in better WLAN experience for all.

No Controller Required

Assisted Roaming is a feature built in all Vigor Access Points and selected Wireless routers. They operate without a wireless controller, providing an ideal solution for simple network deployment.

Stronger Signal Guaranteed

By using the "Minimum RSSI with Adjacent AP" option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.

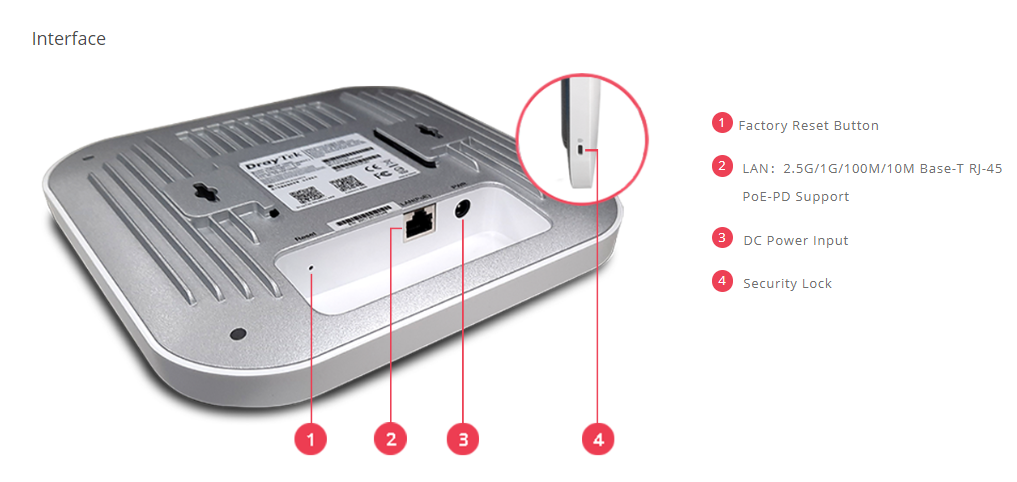

LAN Port 1x 2.5G/1G/100M/10M Ethernet, RJ-45
PoE 802.3at (in)
Antenna 4x Internal PiFA Single-Band (2.4G)
4x Internal PiFA Single-Band (5G)
Gain: 5.1 dBi for 5GHz, 5 dBi for 2.4GHz

1x Internal PCB DB (for scanning radio)
Gain: 5.8 dBi for 5GHz, 4.3 dBi for 2.4GHz
Button 1x Factory Reset Button
DC Power Jack 1
Security Lock 1
2.4GHz Standard IIEEE 802.11b/g/n/ax 4x4 MIMO, up to 1024-QAM
5GHz Standard IEEE 802.11a/n/ac Wave 2/ax 4x4 MU-MIMO, up to 1024-QAM
2.4GHz Link Rate
Up to 1200 Mbps
5GHz Link Rate Up to 2400 Mbps
Max. Number of Concurrent Active Clients 256 (128 per radio band)
Operating Mode AP, Mesh Root, Mesh Node, Range Extender
Roaming AP-Assisted Roaming, PMK-Caching, Pre-Authentication, 802.11r
AirTime Fairness Yes
Band Steering Yes
Auto Channel Selection Yes
Max. Number of SSID 16 (8 per radio band)
Client Numer Limit Per radio, Per SSID
Connection Time Control Yes
IGMP Snooping Yes
Security Mode WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication Personal, Enterprise
Hidden SSIDs Yes
MAC Address Filter Up to 256 entries
Wireless Client Isolation Yes
Mobile Device Management Yes
Built-in RADIUS Server Yes
DHCP DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP Yes
MAC Clone Yes
802.1q VLAN Yes
iOS Keep Alive Yes
Schedule Auto-Reboot, Wi-Fi Up/Down, LED On/Off.
Local Service HTTP, HTTPS, Telnet
Configuration Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade HTTP, TFTP, TR-069
Tools Speed Test, AP Discovery, Statistics,
Configuration Backup and Restore Yes
Syslog Yes
Mail Alert Yes
SNMP v1, v2c, v3
Managed by VigorConnect Yes
Managed by VigorACS Yes
Central AP Management 50 VigorAP
Environment Indoor
Mounting Ceiling Mount, Wall Mount
Power Method DC 12V @ 2.5A.
PoE Power Input 48-56V, 0.5A
Max. Power Consumption 21 watts
Dimension 205 mm x 205 mm x 33.2 mm
Weight 809 g
Operating Temperature 0 to 40°C
Storage Temperature -25 to 70°C
Operating Humidity 5 to 90% non-condensing
Certificate CE FCC
Notes :
  • All specifications are subject to change without notice.

  • The throughput figures are maximum, based on DrayTek internal testing with optimal conditions. The actual performance may vary depending on the different network conditions and applications activated.
